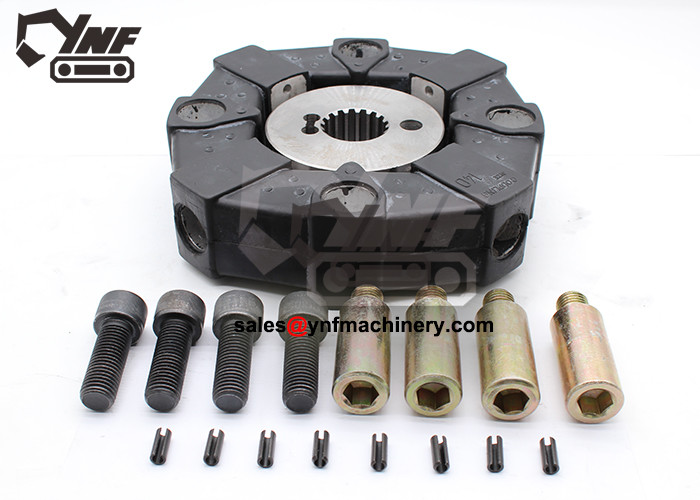

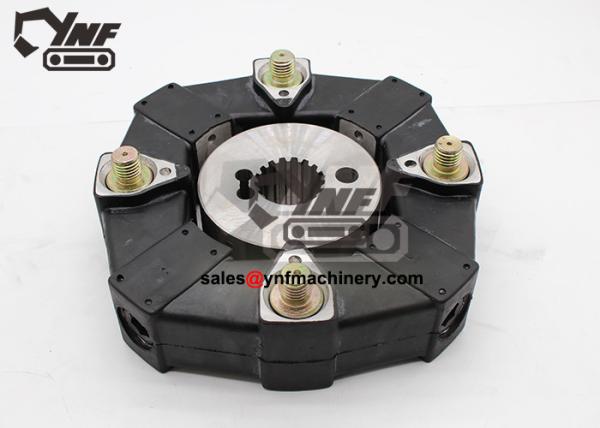

Excavator Flexible Coupling For erpillar ANB00001-UP Engine Spare Parts
Description :
| Part Name | Hydraulic Pump Coupling |
| Coupling Type | Coupling Inserts |
| Machine model | 320C AKH, 320C ALF, 320C ALX, 320C AMC |
| Appliion | Excavator |
| Material | Rubber |
| Color | Black |
| egory | Construction machinery parts |
| Packing | Neutral Package |
| Country of Origin | China |
| Lead time | In Stock |
| Condition | New&OEM Part |
| MOQ | For many products, we don't have MOQ limited. |
| Payment Methods | Bank transfer, Western Union, Credit Card,Paypal |
| Warranty | Supply 3 months warranty for the products from the date of arrival |
| Our Services: | One-stop purchas |
Products Show
Packaging & Delivery
| Packaging Details: | Paper box packing per piece and 40pcs into one carton |
| Delivery Detail: | Within 3 workingdays after payment |
Products imformation:
1. Z [1] BODY AS (DRIVE)
2. 094-1882 [11] PLUG
3. 9S-4191 [2] PLUG (9/16-18-THD)
4. 3J-1907 [3] SEAL-O-RING
5. 6V-8200 M [6] BOLT-SOCKET HEAD (M12X1.75X35-MM)
6. 173-3405 [1] COVER
7. 173-3413 [1] COVER
8. 8T-4196 M [2] BOLT (M10X1.5X35-MM)
9. 173-3404 [1] COVER
10. 8T-4136 M [2] BOLT (M10X1.5X25-MM)
11. 173-3398 [1] COVER
12. 7I-2272 M [2] BOLT (M5X0.8X12-MM)
13. 111-9916 Y [1] VALVE GP-SOLENOID (PRESSURE REDUCING)(POWER SHIFT PRESSURE)
14. 096-5400 M [2] SETSCREW-SOCKET (M20X2.5X50-MM)
15. 8T-4131 M [2] NUT (M20X2.5-THD)
16. 173-3389 [1] STOPPER
17. 185-0347 [1] RING-BACKUP
18. 190-7674 [1] SEAL-O-RING
19. 191-5599 [1] PLUG
20. 173-3384 [1] PISTON
21. 190-7673 [1] SEAL-O-RING
22. 185-0348 [1] RING-BACKUP
23. 173-3390 [1] STOPPER
24. 8F-8733 [1] SEAL-O-RING
25. 185-0201 [1] PIN AS
25A. 129-7978 [1] DOWEL
26. 094-1875 [1] DOWEL
27. 094-1881 [1] PLATE-SLIDE
28. 150-5797 [1] PIN
30. 173-3397 [1] LEVER
31. 095-1528 [1] SEAL-O-RING
33. 200-3246 [1] SPRING
34. 189-9763 [3] SEAL-O-RING
35. 099-3671 [1] SPRING
36. 3D-2891 [1] BALL
37. 200-3244 [1] SPRING
38. 200-3245 [1] SPRING
39. 095-1538 [1] SEAL-O-RING
40. 095-1527 [1] SEAL-O-RING
41. 200-3255 M [1] NUT (M20X1.5-THD)
42. 173-3387 [1] ADJUSTER
43. 225-0417 M [1] SETSCREW (M8X1X45-MM)
44. 200-3254 M [1] NUT (M8X1-THD)
45. 185-0172 [1] RETAINER
46. 095-1519 [1] SEAL-O-RING
47. 185-0169 [1] GUIDE
48. 173-3394 [1] SPOOL AS
49. 099-6128 B [2] SHIM (1.9-MM THK)
099-6126 B [2] SHIM (1.8-MM THK)
099-6127 B [2] SHIM (1.85-MM THK)
099-3670 B [2] SHIM (1.95-MM THK)
099-6125 B [2] SHIM (1.75-MM THK)
099-6123 B [2] SHIM (1.65-MM THK)
099-6124 B [2] SHIM (1.7-MM THK)
099-6122 B [2] SHIM (1.6-MM THK)
099-6121 B [2] SHIM (1.55-MM THK)
099-6119 B [2] SHIM (1.45-MM THK)
099-6118 B [2] SHIM (1.4-MM THK)
099-6117 B [2] SHIM (1.35-MM THK)
099-6113 B [2] SHIM (1.25-MM THK)
099-6115 B [2] SHIM (1.3-MM THK)
099-6111 B [2] SHIM (1.15-MM THK)
099-6112 B [2] SHIM (1.2-MM THK)
099-6109 B [2] SHIM (1.05-MM THK)
099-6110 B [2] SHIM (1.1-MM THK)
099-6120 B [2] SHIM (1.5-MM THK)
099-3669 B [2] SHIM (1-MM THK)
Products instruction:
Basic requirements for elastic coupling performance: 1. Large bearing capacity and sufficient strength. The maximum allowable torque of the coupling is required to be more than 3 times the rated torque. 2 It has a strong compensation (radial, angular, axial) effect, and the smaller the reaction force generated during the deviation compensation, the better. 3 It has high elasticity and high flexibility, which can reduce the amplitude of shock and vibration to the allowable range, and should have the function of slowing vibration and shock in the direction of rotation. 4. Reliable work and stable performance. Couplings requiring rubber elastic elements should also have good heat resistance, not easy to age, and have a long service life. 5. The coupling must have an insulation resistance of more than 100 ohms and can withstand a voltage of 2kV. 6Easy to install, maintain and replace.
Company information:
Guangzhou XIEBAGN MACHINERY CO., LIMTED
specialized in:
couplings, rubber mounts, gera parts, hydraulic seals and seal kits for hydraulic hammers, rock breakers, hydraulic excavators,wheel loaders, and JCB badkhoe loaders.
And, Our company also supply:
Engine parts, hydraulic piston pump and hydraulic travel motor, Swing motor assembly and hydraulic component parts, electric parts, etc. Hydraulic hammer breaker parts with piston, cylinder, chisel, through bolt, side bolt, top bush, front head bushing,accumlator, valve, etc.
We always try our best for all our customers and make it better and better. Welcome!
